Magic Pie Motor with External Controller

Golden Motor Magic Pie External (1000 Watts) delivers powerful, efficient performance for an enhanced e-bike experience.

Can be used with 24 -52v battery
25amp controller for up to 1500 watts of power, 1000w continuous

For a wealth of Magic Pie videos for information, installation, and upgrading check out this page: Click Here

Installation:

Visit our Instructions for detail installation guides and videos

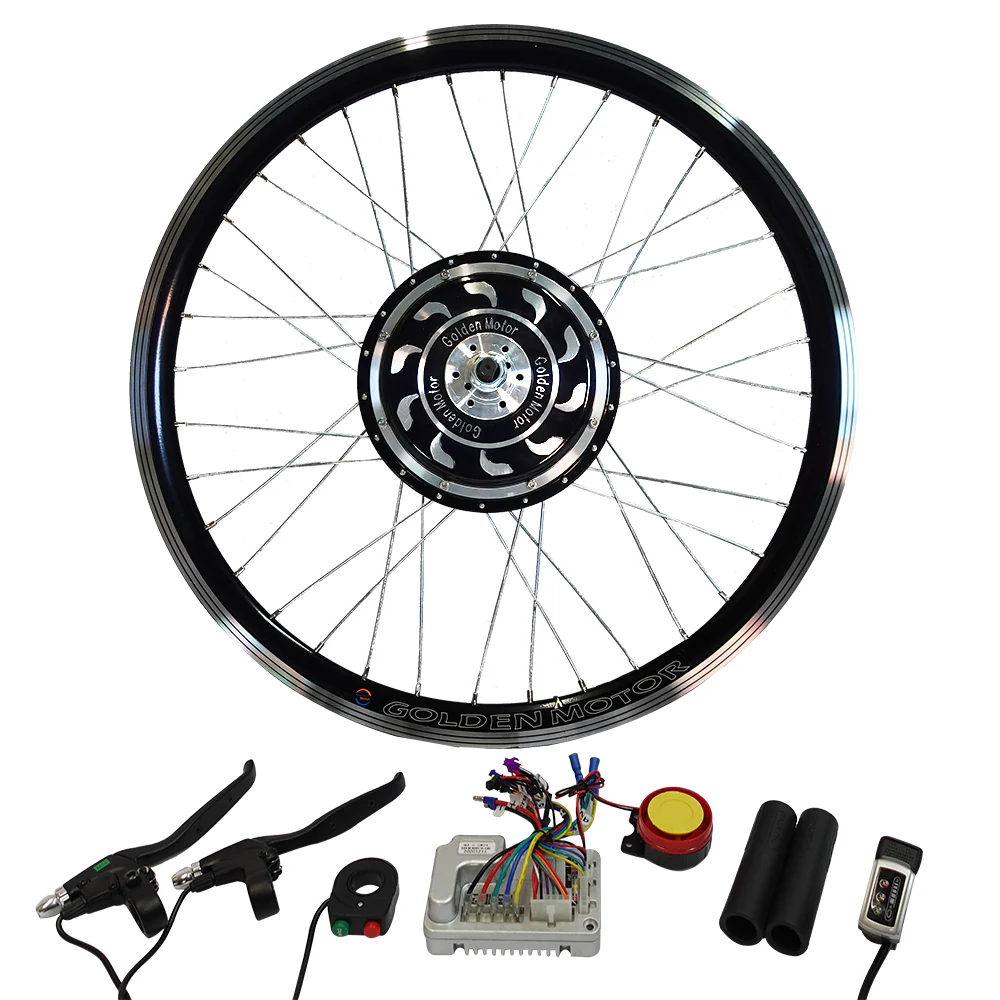

Kits Include:

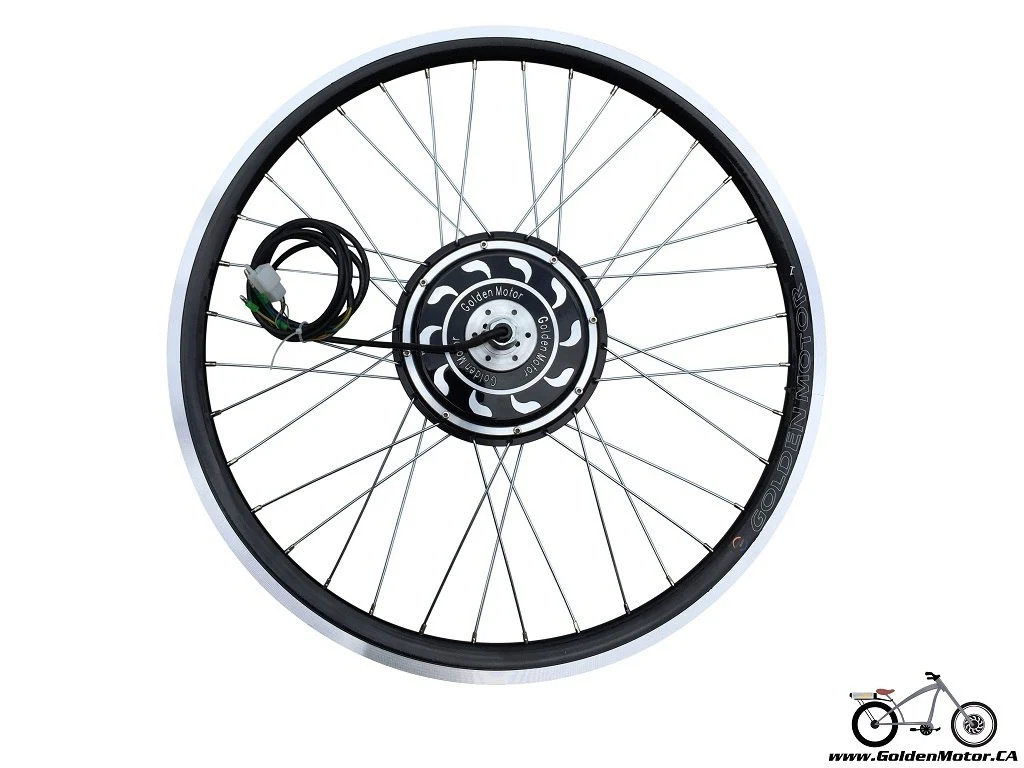

Magic Pie motorized wheel with brushless gearless hub motor.
Double-wall aluminum rim
Waterproof military grade easy connect wiring harness
Thumb OR twist throttle
Power brake levers for regenerative braking
Two button switch for cruise control and optional horn or light

Optional items:

USB Cable: For programming the motor to set voltage, speed, power. etc, you need one of these. Download the software here.

Torque Arm: Front wheels must use Torque arms. If you don't have any at least order one, two is better. Rear torque arms are optional but still recommended for safety.

Battery Options:

This kit comes with everything you need to convert your bicycle minus battery and charger which you can add now or later.
Any of our 24, 36, 48, or 52 volt batteries will work with this kit.
52 volts will get you more power and higher top speed.

Tire Compatibility

- Regular Rim: 1 inch to 2.3 inch
- Casted Rim: 1.75 inch to 2.75 inch

Once you have picked the voltage then you just need to pick the size. The higher the AH the farther the battery will take you. A 10ah battery will give you 25 miles on average. A 20ah battery should get you 50 miles. More ah means bigger in size, more weight and harder to mount. Click Here for all the battery options

Torque Rating

~55–75 Nm Peak

Step File:

STEP FILE F

STEP FILE R

External Controller

Magic Pie External (1000 Watts)

PRO-902 (250 Watts)

Black Magic (1000 Watts)

Smart Pie External (500 Watts)
